4L60-005 Reluctor Ring Assembly for 4L60-E V8 engine swaps4L60-005

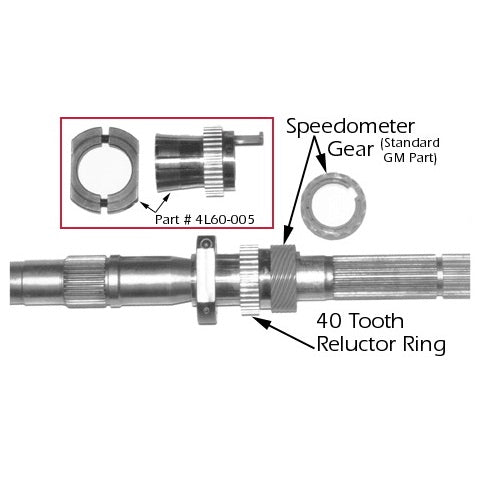

This shows the reluctor ring sleeve assembly (Stealth Conversions Part #4L60-005), both on and off the output shaft. It can be installed without removing the output shaft from the transmission, and it does not require drilling a hole into the transmission case.
This unit holds the speedometer drive gear onto the output shaft, and it has a reluctor ring that is positioned about 7/8" forward of the original location, which requires a tailhousing modified to accept the relocated sensor.
This assembly simply slides onto the output shaft and the collar clamp securely holds the unit in place. Alignment holes (not visible in the photo) ease the positioning, and also balance the assembly.
The collar clamp has the outside portion machined flat to allow proper oil spray to the rear bushing in the tailhousing.
