6-Bolt Tailhousing Adapter for 4L60-E V8 engine swaps

Stealth Conversions Part #4L60-624

6-bolt tailhousing adapter for converting 6-bolt 4L60-E tailhousing to run speedometer cable,
Part #4L60-624, $155.
including shipping



6-bolt tailhousing adapter for converting 6-bolt 4L60-E tailhousing to run speedometer cable. P/N 4L60-624



For two wheel drive applications, this adapter requires using a Caprice tailhousing, 4L60-003 reluctor ring,  4L60-004 gear clamp assembly, GM vss, electrical pigtail, and GM speedometer gears and sleeve. Used Caprice tailhousings can often be purchased on Ebay.

This adapter can also be used to connect a newer 4L60-E transmission with the 6-bolt tailhousing to an older transfer case which normally connected to a 4L60-E or 700-R4 transmission with a 4-bolt tailhousing



624 Adapter with 40-tooth reluctor ring, sensor, and electrical pigtail.

The $155 price doesnot include the reluctor ring, vehicle speed sensor or the electrical pigtail.

The adpater does come with the mounting bolts (not shown).

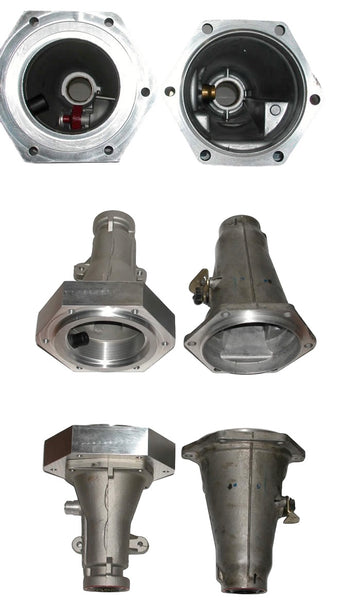

624 adapter with Caprice tailhousing on the left. Stock 6-bolt tailhousing on the right.





624 adapter with Caprice tailhousing on the left. Stock 6-bolt tailhousing on the right.





624 adapter with Caprice tailhousing on the left. Stock 6-bolt tailhousing on the right.

The overall lengths are the same.
